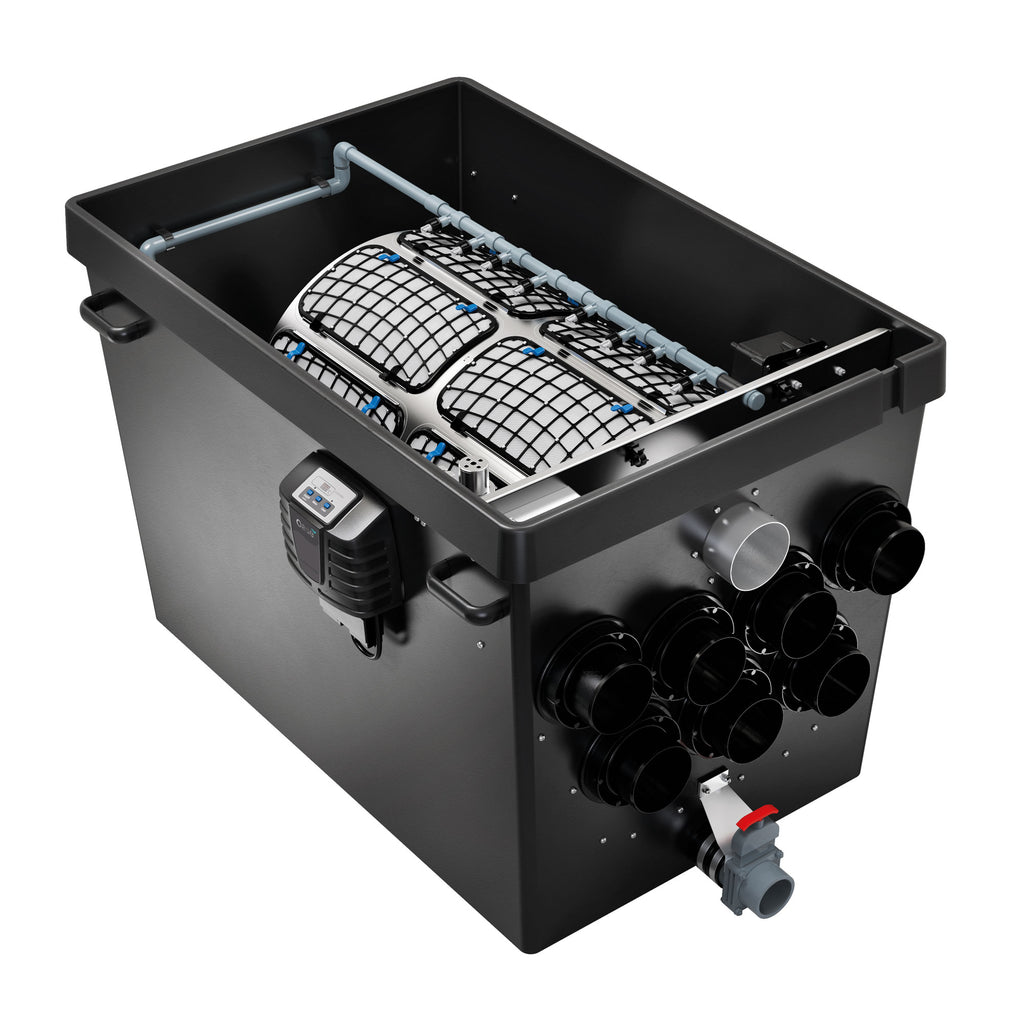

Atlantic Oase ProfiClear Premium XL Gravity-fed

MPN: 95197

• Volts: 120
• Watts: 5 / 1600 (cleaning)

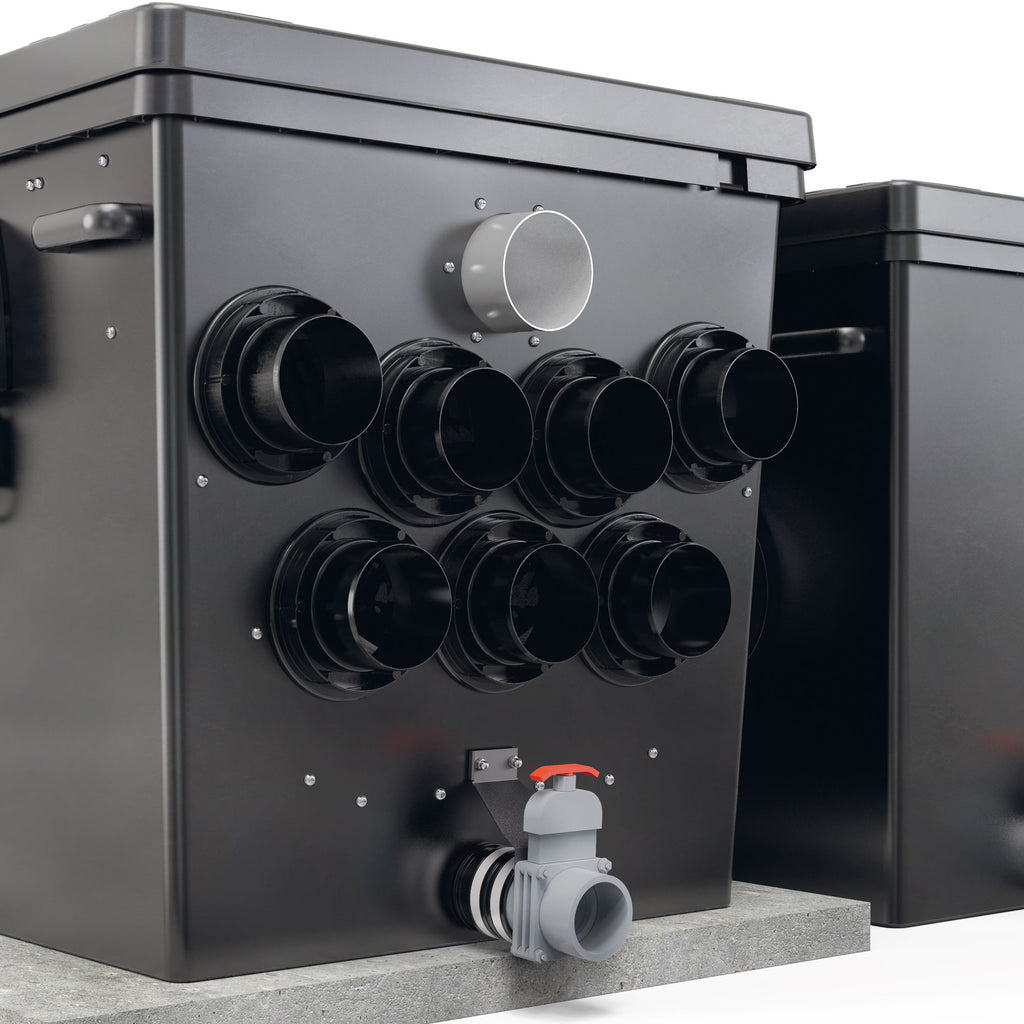

• Inlet: (7) DN 110 - require 4" rubber couplings
• Outlet: (2) 180mm
• Waste Discharge Outlet: 4" (DN 110)
• Minimum Flow: 6,600 gph
• Max Flow: 17,400 gph
• Coarse Debris Extraction: 60 microns
• Rinse Pump: 101 psi
• Cord Length: 16' + 16'

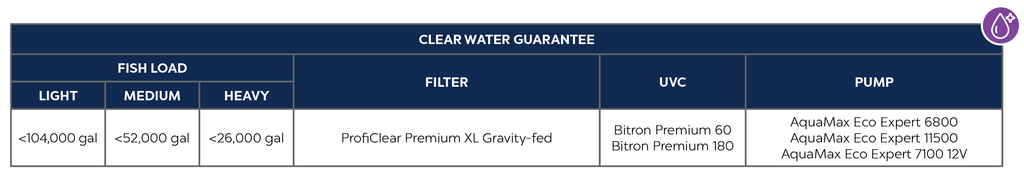

• Pond Volume: up to 104,000 gal
• Requires: ProfiClear Premium XL Moving Bed Module or ProfiClear Premium XL Standing Bed Module and ProfiClear Premium XL Gravity-fed Discharge Module

Product Details:

• Drum filters utilize a rotating screen to remove debris and moving bed filtration to strip ammonia and nitrites from the water

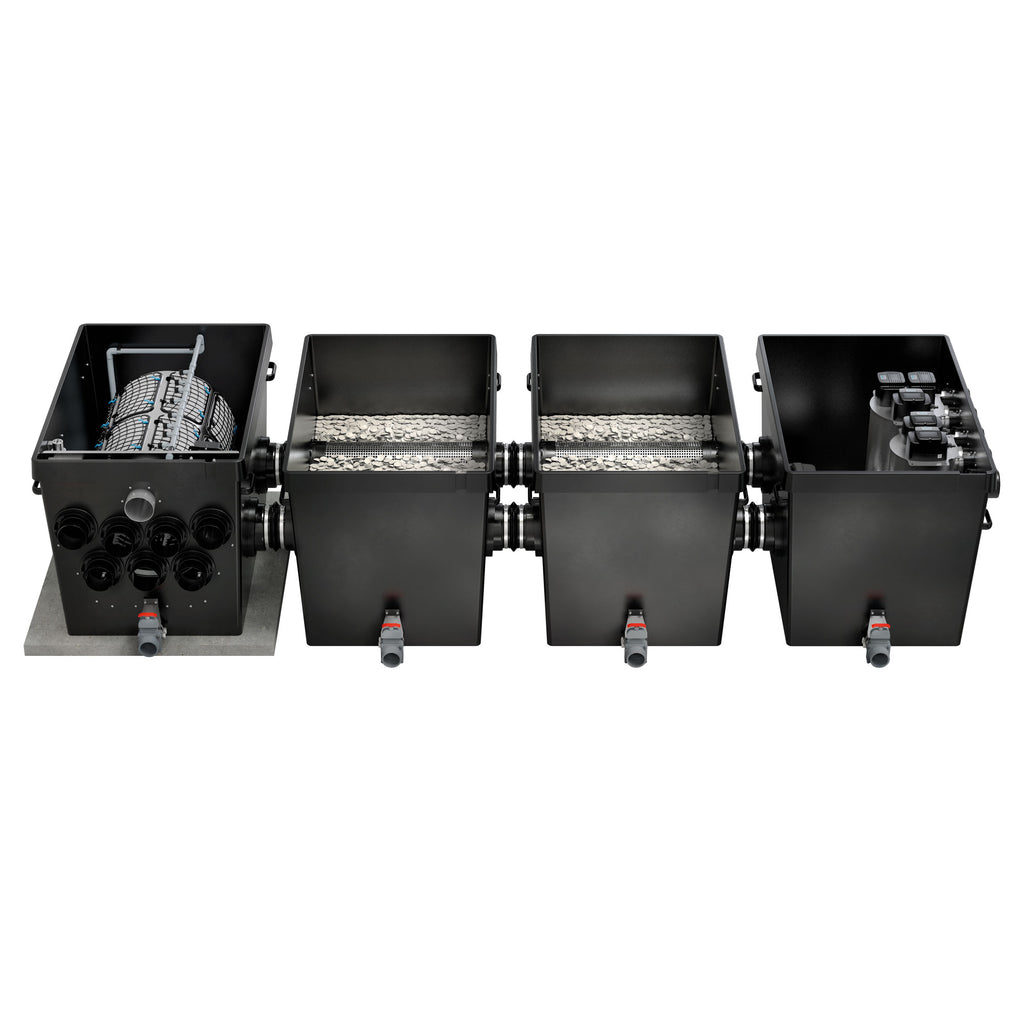

• Oase ProfiClear Premium XL filter systems are fully automatic, flow-through, self-cleaning modular filters that polish the water of koi and swim ponds

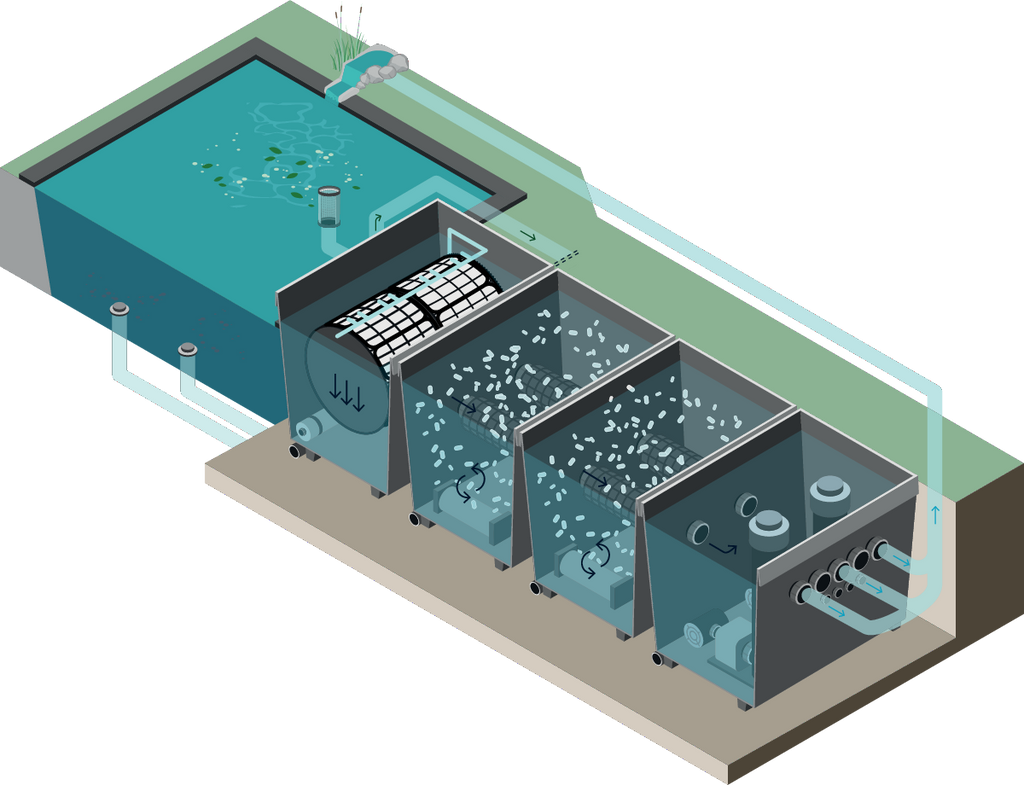

• Gravity-fed filters install below pond level, taking in dirty water at one end as clean, filtered water is pumped back to the pond from a pump housed in the discharge side

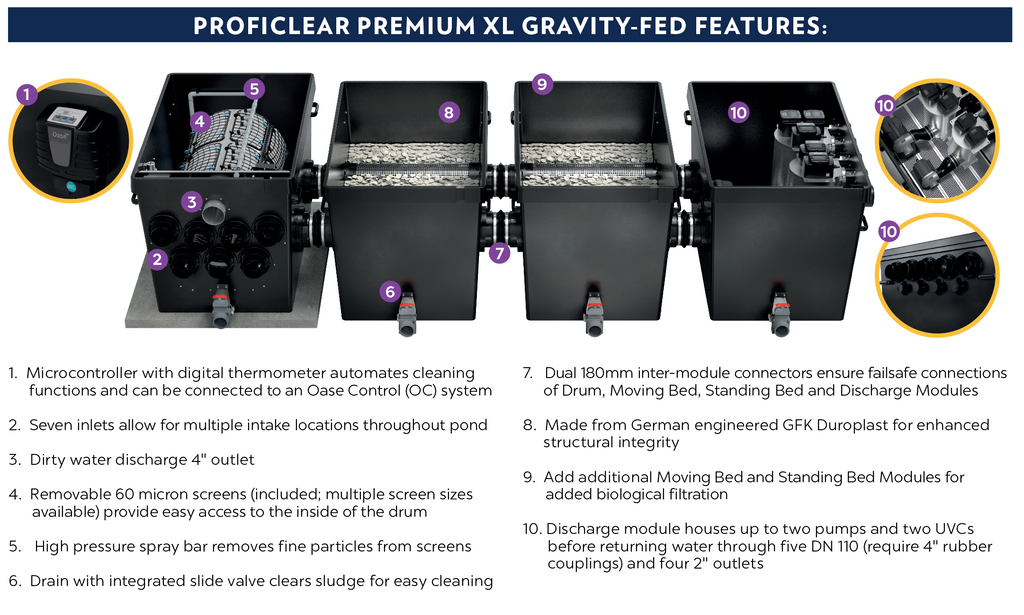

• ProfiClear Premium XL Gravity-fed filters mechanically screen, biologically filter and highly aerate pond water throughout modules

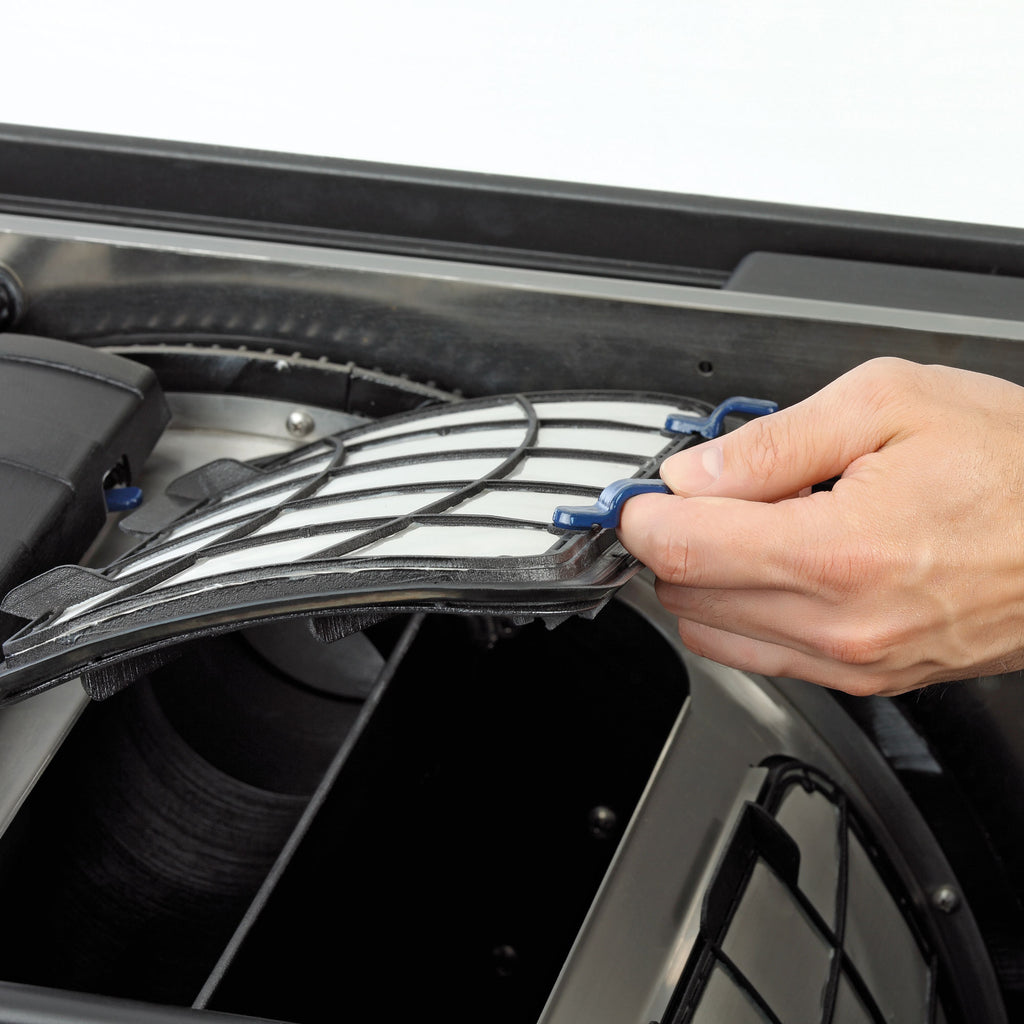

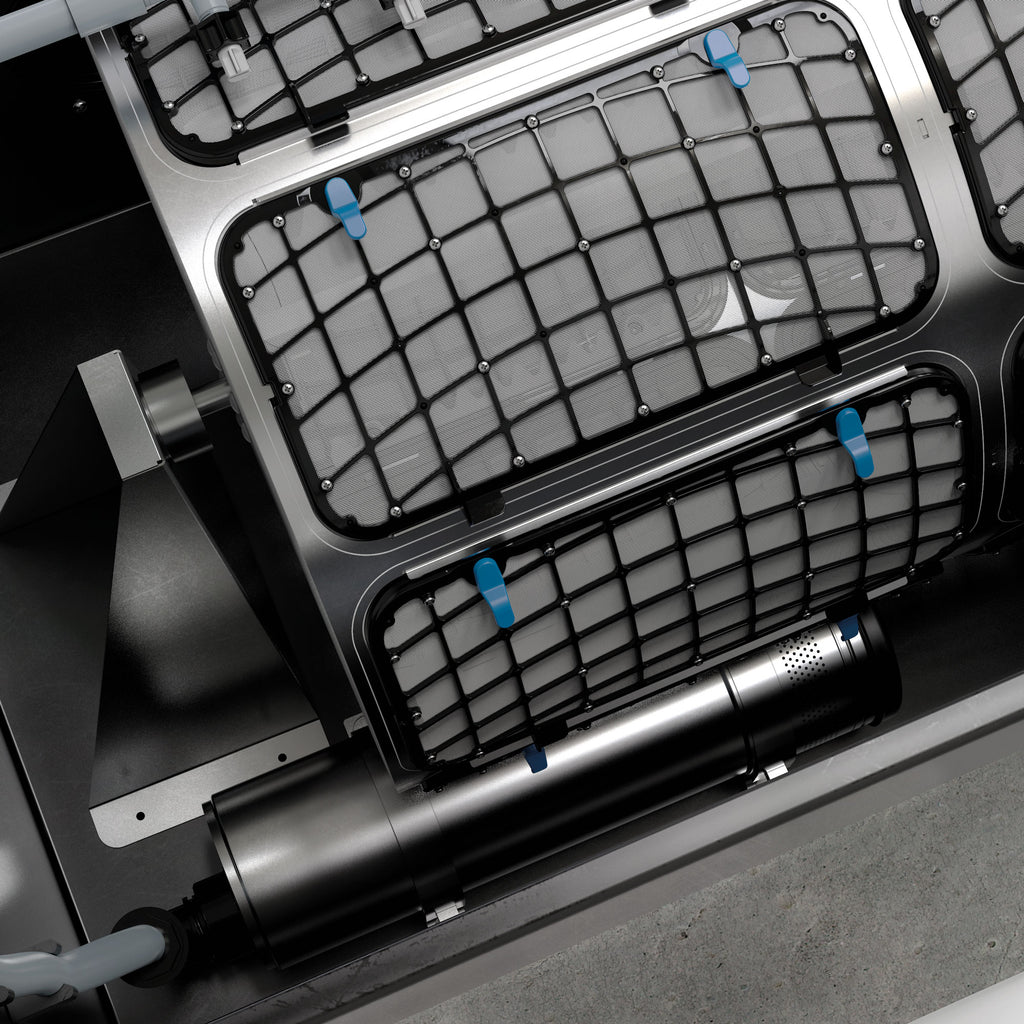

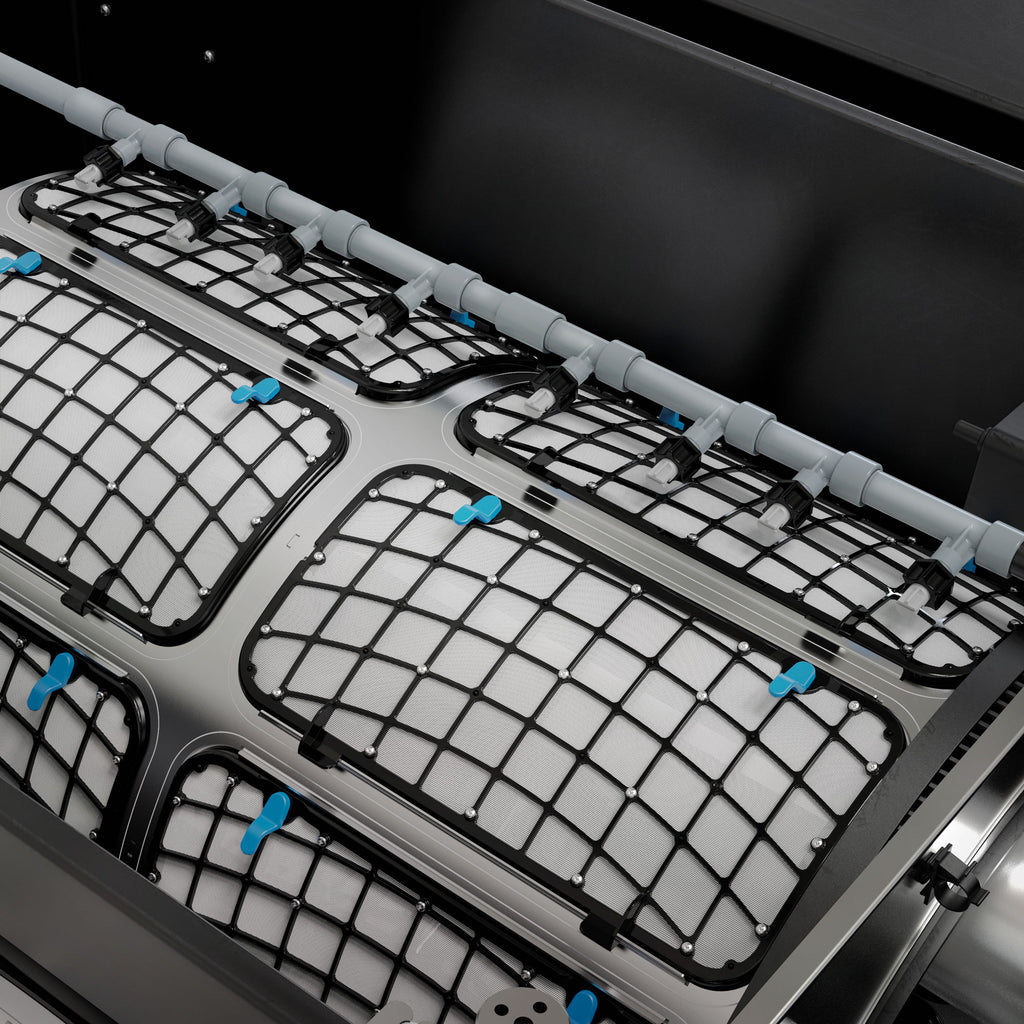

• The Drum Filter Module sieves and separates solids in incoming pond water down to 60 microns, automatically cleaning itself with a high pressure pump, via sensor or time interval, or manually
• All Modules are easily drained and flushed for cleaning and maintenance via integrated sludge drains

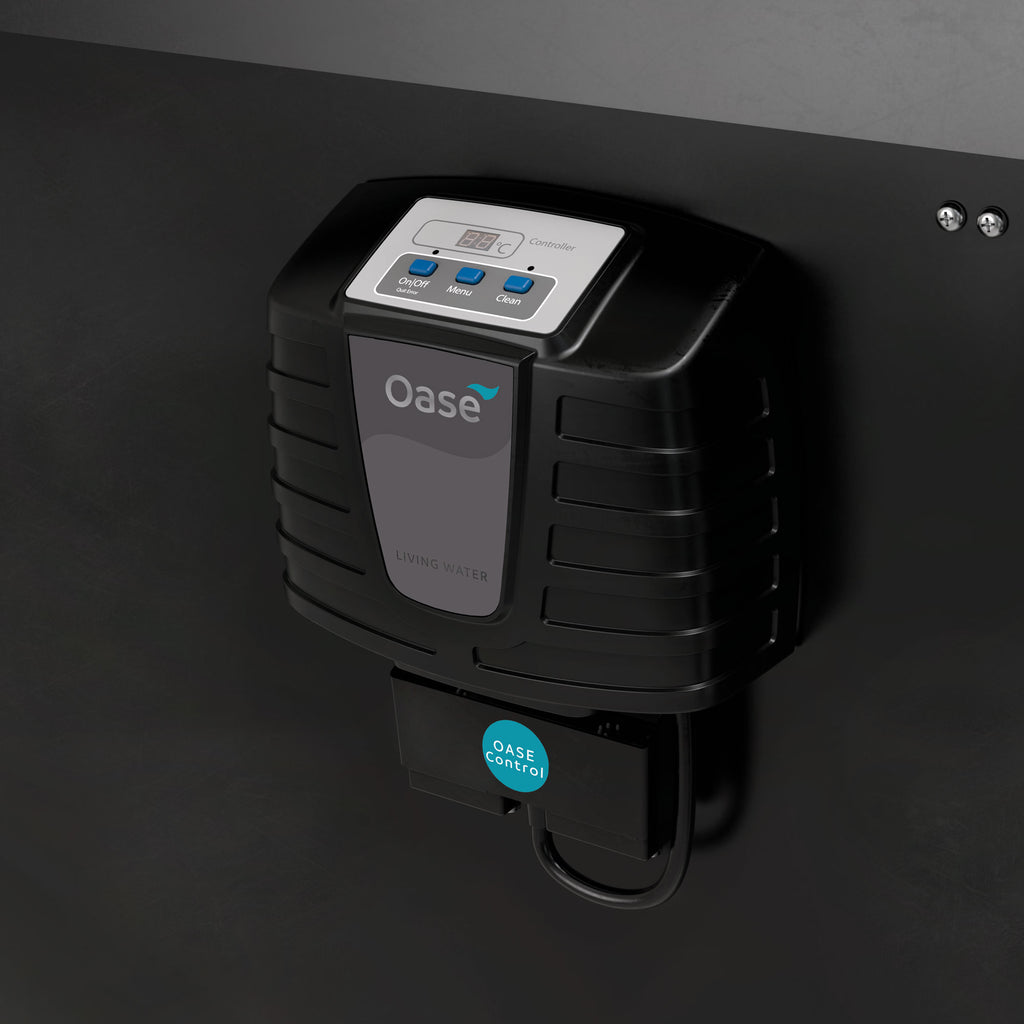

• XL Systems can be operated and monitored remotely via Oase Control app with the Oase Control System (Garden Cloud Controller sold separately)
